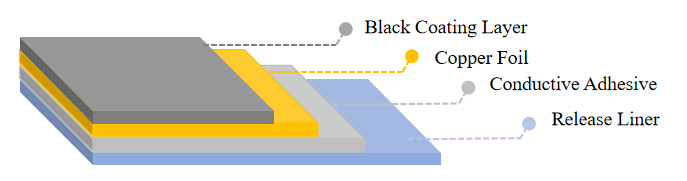

產品結構
特點
產品參數(shù)
|
Properties |
CU020 |
CU025 |
CU030 |
CU045 |
CU070 |
CU090 |
Test Method |
|
Thickness(um) |
20±5 |
25±5 |
30±5 |
45±10 |
70±10 |
90±10 |
ASTM D374 |
|
180° Peel Strength-SUS(N/cm) |
4 |
4 |
6 |
6 |
8 |
8 |
ASTM D3330 |
|
Shielding Efficiency (@1GHz) |
60 |
70 |
70 |
80 |
80 |
80 |
ASTM D4935 |
|
Color |
Black |
Visual |
|||||
|
Adhesive Surface Resistance |
0.1Ω/□ |
ASTM D257 |
|||||
|
Temperature Resistance Long Term / Short Term |
120 / 260oC |
- |
|||||
